Gauss' Method of Elimination

Gauss' method of elimination determines the possible solution set of a linear system.

Note: Conventionally, Gauss' method is applied to the rows of the matrix. However, it can also be applied to columns. Therefore, in certain practical situations, calculations can be made using columns instead of rows.

It's also known as the Gauss-Jordan elimination method, although the latter is a variant of Gauss' elimination method.

What's its purpose?

Gauss' elimination method transforms a system of linear equations into a staircase system.

This significantly simplifies the calculation of the rank and the finding of solutions for the linear system, especially when it consists of numerous equations and variables.

How Gauss' Method of Elimination Works

This method aims to find an equivalent matrix that is easier to analyze.

What is an equivalent matrix? It's a matrix whose associated linear systems are equivalent. Thus, the linear system associated with the equivalent matrix M' has the same solutions as the system associated with the original matrix M but is simpler to analyze.

The Gauss-Jordan elimination process involves reducing the initial matrix to a staircase matrix (or step matrix).

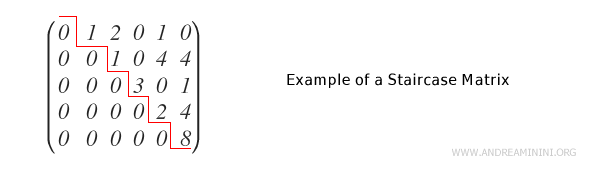

example of a staircase matrix

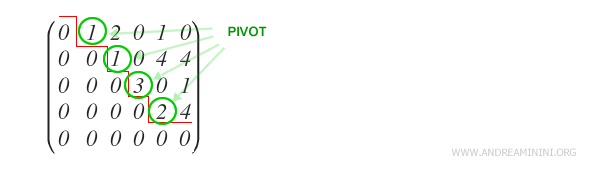

Each nonzero step in the staircase is called a pivot.

Note: The pivot is the first nonzero element from the left in a nonzero row. It's also known as the leading term.

Characteristics of a Staircase Matrix

A staircase matrix has the following characteristics:

  1. Null rows are at the bottom

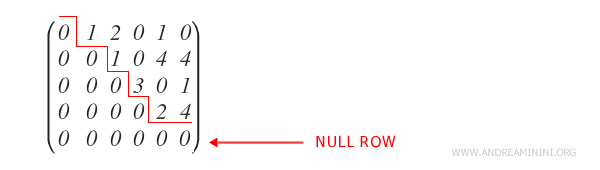

    in the staircase matrix the null rows are at the bottom

    What's a null row? A null row refers to a row with all elements equal to zero.

  2. The pivot of each nonzero row is in a column to the right of the pivots in the previous rows.
    the pivot of each nonzero row is in the column to the right of the pivot of the preceding row

To build the staircase of the equivalent matrix, certain permissible transformation operations called "Gauss' moves" can be performed.

What are Gauss' Moves?

The permissible operations on the matrix, according to Gauss, are:

  1. Swapping one row with another

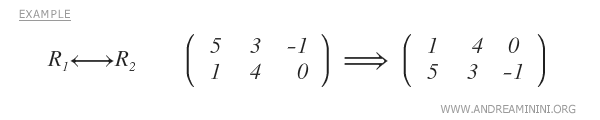

    notation and an example of row swapping between two matrices
  2. Multiplying a row by a non-zero real number

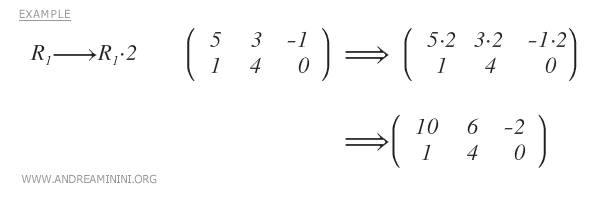

    an example of the second permissible Gauss' move
  3. Adding two rows together

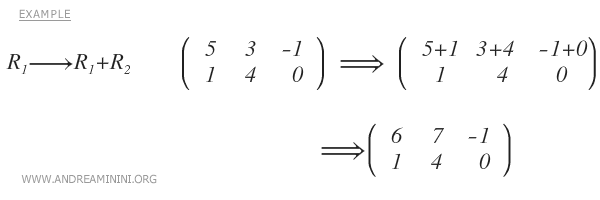

    adding two rows of the matrix

Note: It's also possible to combine the last two operations into one, i.e., adding to a row the multiple of another row.

Gauss' Algorithm

Given a matrix A with m rows and n columns, the objective is to calculate an equivalent matrix in staircase form.

Note. If the matrix is null, the algorithm concludes immediately.

Step 1

Identify the first non-zero column j of A from the left.

identifying the first non-zero column

If the first element of column j is non-zero, proceed to step 2.

Otherwise, if it is zero, find the first row Rx that has a non-zero j-th element

example

Then, swap row R1 with row Rx and move to step 2.

example

Note. The notation for indicating this row swapping operation is as follows:
correct notation for row substitution in a matrix

This way, the first pivot (p1) of the matrix is obtained.

the first pivot number of the matrix

Step 2

Ensure that the other qj-th elements of the rows Ri below the pivot are all zero.

example

If not, and some elements are non-zero, apply the following subtraction to row Ri.

example

This method helps eliminate any non-zero elements below the pivot.

Once the last row is reached, move to step 3.

Step 3

Identify the first j-th column to the right of the last pivot that does not have all zeros in the rows below the pivot.


If such a column does not exist, the algorithm ends here.

example

In this case, the column exists.

The first element of the column is a zero. Therefore, find the first underlying row with a non-zero value and swap the rows.

example

This way, the second pivot p2 of the staircase matrix is found.

the second pivot of the staircase matrix

If the pivot is on the last row of the matrix (m), the algorithm ends here.

In this case, we are only at the second row (R2) out of four, so the process continues to step 4.

Step 4

Verify that the other qj-th elements of the rows Ri below the last pivot pk are all zero.

example

In this case, a non-zero element is found in row Ri (i=4).

example

To eliminate it, apply the following subtraction to row Ri.

example

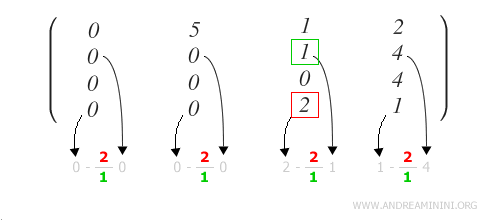

Apply the formula to all elements of the row.

example

Note. It's unnecessary to apply it to the first elements of the row, as it automatically cancels out with the zeros of the pivot row. For clarity, however, I have chosen to apply it across the entire row.

Once the calculations are done, the following situation is obtained.

example

This results in a staircase matrix.

And so on.




Please feel free to point out any errors or typos, or share suggestions to improve these notes. English isn't my first language, so if you notice any mistakes, let me know, and I'll be sure to fix them.
