Cyclotomy (Geometry)

Cyclotomy is a geometrical challenge that involves dividing a circle into n equal segments using only a straightedge and compass.

This ancient problem, originating from Greece, is also famously known as the problem of constructing regular polygons.

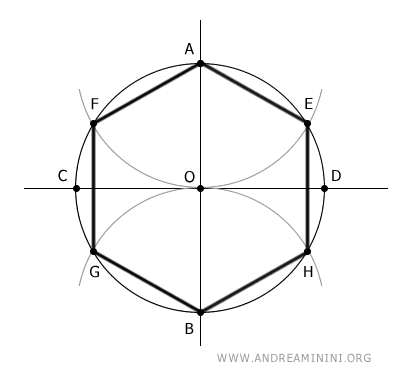

If a circle can be equally divided into n segments with simple tools, then it is similarly possible to construct a regular polygon with n sides. Take, for example, a hexagon.

the result is a hexagon

Greek philosophers and mathematicians attempted to interpret the natural world using pure geometric shapes, yet they could not universally solve cyclotomy.

Greek mathematicians managed to construct regular polygons from 3 (triangle) to 6 (hexagon) sides, but a regular polygon with 7 sides eluded them. Despite centuries of effort by numerous mathematicians, constructing a regular heptagon remained elusive for over two millennia until Gauss proved in the 19th century that such a task was impossible with traditional methods.

Gauss's Conditions for Cyclotomy

In the 19th century, Carl Friedrich Gauss finally cracked the problem of cyclotomy.

Gauss established that a circle can be evenly divided using a straightedge and compass if and only if specific conditions are met:

  • n is a prime number in the form:

    $$ n = 2^{2^k} + 1 $$

    Here k is a natural number (k∈N), and these values are known as Fermat numbers.
  • n is not a prime number, but a product of a power of 2 and distinct Fermat prime numbers:

    $$ n = 2^m \cdot p_1 \cdot p_2 \cdot ... \cdot p_n $$

    Here, m is a natural number (m∈N), and each pi is either 1 or a Fermat number $ 2^{2^k}+1 $, provided they are also prime and distinct from each other.

This breakthrough led Gauss to a solution for cyclotomy.

Gauss's conditions effectively rule out the possibility of dividing a circle into segments where n is a prime not fitting the Fermat form (such as 7, 11, 13, etc.), or a composite number that does not satisfy the second listed condition. Therefore, it is not feasible to construct a regular polygon in such cases using only a straightedge and compass.

Example

According to Gauss's rule, it is feasible to divide a circle into parts like 3, 5, 17 (Fermat primes), as well as 4, 8, 16 (powers of two), and combinations such as 15 (3 × 5), 10 (2 × 5), etc.

However, Gauss's rule excludes the possibility of constructing regular polygons with, for example, 7, 9, 11, 13, 14, etc., sides.



Verification. Given that Fermat numbers are as follows:

$ k $ $ 2^{2^k} + 1 $
0 21+1=3
1 22+1=5
2 24+1=17
3 28+1=257
4 216+1=65537

From Gauss's first condition, selecting prime Fermat numbers reveals that circles can be divided into 3, 5, 17, 257, 65537 parts.

$$ n = \ 3 \ , \ 5 \ , \ 17 \ , \ 257 \ , \ ... $$

Note that not all Fermat numbers are prime; only the first five are considered prime. It is crucial to select only the prime Fermat numbers.

According to Gauss's second condition, non-prime numbers (n) resulting from multiplying powers of two (2m = 1, 2, 4, 8, ... where m≥0) by distinct Fermat primes (3, 5, 17, ...) are also considered.

$$ 2^0 \cdot 3 \cdot 5 = 15 \\ 2^0 \cdot 3 \cdot 17 = 51 \\ \vdots $$

Thus, combining all possible numbers, a circle can be divided into segments corresponding to n = 3, 4, 5, 6, 8, 10, 12, 15, 16, 17, ... parts using a straightedge and compass.

However, dividing the circle into 7, 9, 11, 13, 14, ... segments remains impossible with these tools, making it similarly impossible to draw regular polygons with seven, nine, etc., sides using only a straightedge and compass.

Insights

Some further observations:

  • Gauss's findings not only solved an age-old geometric challenge but also opened new avenues in number theory, algebra, and discrete mathematics. Cyclotomy is deeply connected to the theory of cyclotomic fields and polynomial equations and holds significant implications for cryptography and information theory. Today, cyclotomy acts as a bridge between classical geometry and modern number theory, illustrating how historical challenges can lead to profound mathematical insights that span centuries.

    In essence, the simple query of how to split a circle has broadened our understanding of symmetry, number factorization, and the algebraic structure of polynomials, setting the stage for future developments across various mathematical disciplines.

And so forth.






Please feel free to point out any errors or typos, or share suggestions to improve these notes. English isn't my first language, so if you notice any mistakes, let me know, and I'll be sure to fix them.
